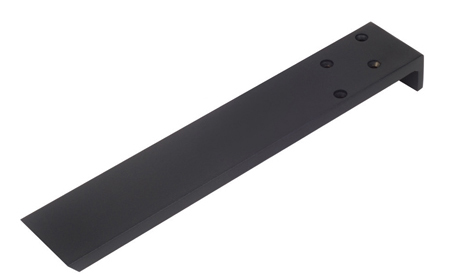

Standard Plus Granite Bracket

Granite Bracket - Standard Plus

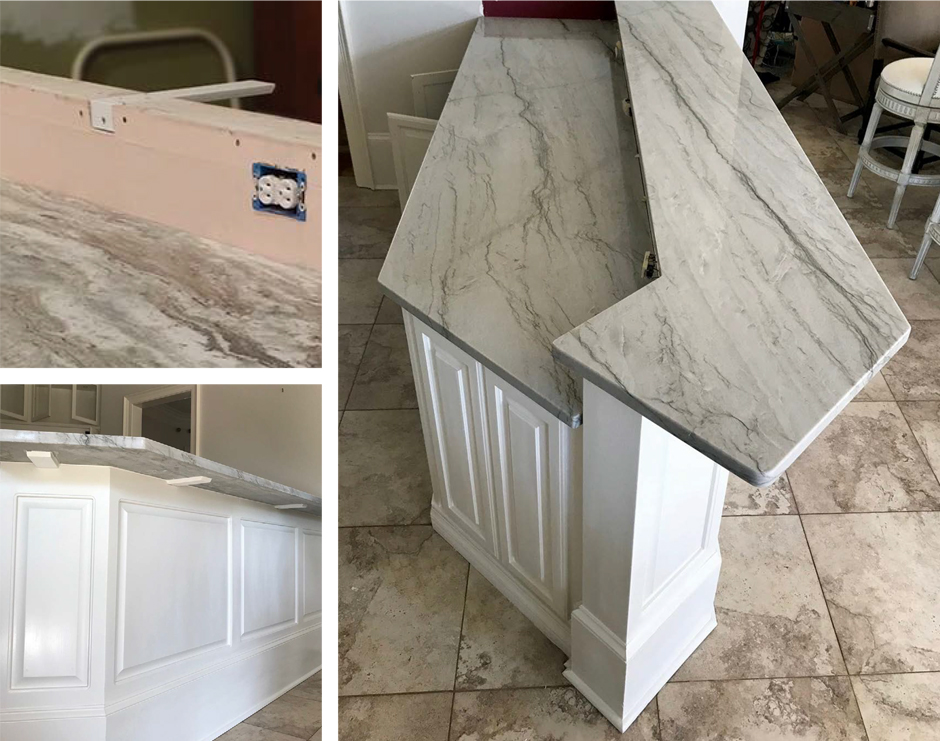

Centerline’s Standard Plus Granite Bracket is a versatile product that can be used as a knee or pony wall support or as an island countertop support.

The Standard Plus countertop support bracket differs from the Standard Granite Bracket in that it has a 1½” flange on the back of the bracket. The rear flange wraps down the backside of the knee or pony wall and provides an extra contact point for securing the bracket.

Made of ½” thick steel, this sturdy bracket can support an overhang up to 21”.

Installation Instructions More Information
Standard Plus Granite Brackets

Specs


  • Horizontal support is 2 ½” wide x ½” thick steel
  • Length is 8” – 21”, determined by customer
  • 4 mounting holes, ¼”, countersunk, off-set pattern
  • The flange is 2 ½” wide x 1 ½” tall x ¼” thick steel with 1 mounting hole, ¼”, countersunk
